Guillotines

5560 LT

Name: 5560 LT
Brand: de-ideal
SKU: 55604111
Price: 19486.0 EUR
Availability: InStock

€19.486,00

Prices valid in Germany incl. 19% VAT (Online sales in Germany only. For other countries, please contact your local dealer).

Equipment

Find a dealer

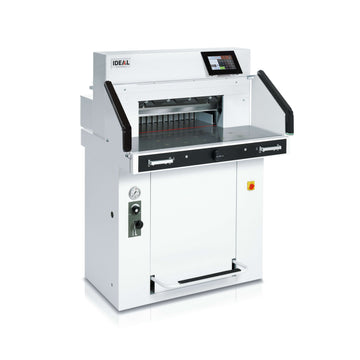

IDEAL 5560 LT, hydraulic guillotine with EASY-CUT, 550 mm cutting length, IR safety curtain, touchpad and air table – Made in Germany.

highlights

With air table at the front and rear for effortless handling of heavy stacks.
Hydraulic stack cutter for formats up to DIN A3+ with a cutting length of 550 mm
Hydraulic precision drive for knives and press beams
EASY-CUT two-hand operation with safe cutting release
IR safety light curtain on the front table for optimum protection.
Electric return stroke with 7" touchpad and 99 programmable settings.
Electronic handwheel for manual fine adjustment in 1/10 mm increments.
Continuously adjustable pressure with pressure gauge display.
Blade changing device with covered cutting edge – tool-free and safe
Sturdy cast frame and durable all-metal construction.
Optical LED cutting indicator and LED table lighting in three levels
Made in Germany – easy to maintain, durable and future-proof.

Description

The IDEAL 5560 LT is a professional hydraulic stack cutter for the highest demands – equipped with air tables on the front and rear for particularly comfortable and material-saving operation. The generous cutting length of 550 mm and the robust construction make this model the ideal solution for printing companies, finishing operations, and in-house printing departments with high volumes.

The air table significantly reduces friction when moving heavy stacks of paper and makes positioning on the cutting table easier – a noticeable advantage for productive work. The proven EASY-CUT cutting release allows safe two-hand operation. The knife and pressure bar are driven hydraulically, the pressure can be adjusted steplessly and read precisely via a pressure gauge. A foot pedal supports pre-pressing or serves as a cutting indicator.

Operation is via a 7" touchpad with a multilingual interface. Up to 99 programs with 99 steps each can be saved here – including chain dimension function, direct input and EJECT function. An integrated calculator and fixed dimension memory for DIN formats support efficiency. The electronic handwheel allows for fine-tuning manual adjustments of the backstop in 1/10 mm steps.

Safety is a top priority: An IR light barrier on the front table, the closed rear table cover, a knife stop, the 24-volt control system, and the tool-free knife change with covered cutting edge are part of the comprehensive SCS – Safety Cutting System. The system is complemented by an optical LED cutting indicator, LED table lighting, and machine self-diagnosis.

Manufactured in Germany, the IDEAL 5560 LT impresses with its solid all-metal construction, durability and ease of repair – a well-thought-out solution for professional, continuous use.

specifications

Model: 5560 LT
Order number: 55604111
Dimension: 1370 x 1070 x 1400 mm (H x W x D), width with extension table 1630 mm
Weight: 360 kg, 377 kg with additional tables
Cutting length: 550 mm
Cutting height: 95 mm, 92 mm with press beam cover
Restschnitt: 32 mm, 60 mm with press beam cover
Insertion depth: 570 mm
Table dimensions: 460 mm front table depth, 430 mm usable
Pressing: Automatic pressing
Press pressure: 200 - 1100 daN
Backgauge: electric
Side stop: behind, on the left and right
Knife drive: hydraulic
Control: 7 inch touchpad
Connection values: 230 V / 50 Hz / 1.5 kW

Downloads

Betriebsanleitung

Shipping and Payment

Free Shipping:
for orders over €50.00

Shipping options:
by GLS parcel delivery for 5.95 €

Payment methods:
Visa, Mastercard, American Express, Maestro, UnionPay, Klarna, PayPal, Shop Pay, Apple Pay, Google Pay

Quality from Germany

Long-term repairable

Sustainable product

More details

Im großen Lager einer Druckerei stehen etliche, in Folie eingeschweißte, aufeinander gestapelte Paletten mit Druckpapier und Druckbögen. Im Vordergrund ein Stapelschneider IDEAL 5560 mit Bedien-Touchpad und Lichtschranke. Der Raum ist durch die Deckenbeleuchtung gut ausgeleuchtet.

The perfect choice for getting started with professional cutting technology.

Detailansicht eines IDEAL Stapelschneiders 5560 LT. Links zu sehen die ir-Sicherheits-Lichtschranke. Zusätzlich zu sehen sind ein Teil des metallenen Maschinentischs mit den Luftdüsen des Lufttischs, der Blick führt zum Rückanschlag - und eine EASY CUT-Schnittauslösetaste.

Safety and efficiency combined.

A standard light barrier in the work area ensures safe, efficient, and professional operation. This technology not only protects the operator, but also enables a smooth workflow.

Ausschnitt eines IDEAL Stapelschneiders. Thematisiert ist das Modell IDEAL 5560-LT. Schräg von oben fotografiert. Oben sichtbar eine transparente Sicherheits-Haube. Zwei Hände betätigen die Zweihand-Schnittauslöse-Tasten EASY-CUT.

Precision and safety in one package.

With the patented EASY-CUT two-hand cutting trigger, you can control the knife and press beam of the stack cutter safely and comfortably. These controls allow you to move both components independently or synchronously, giving you maximum flexibility and control during cutting. This technology ensures not only precise cuts but also maximum operating safety.

Detailansicht eines IDEAL Stapelschneiders 5560 LT mit Lufttisch-Düsen. Zu sehen ist der optische LED-Schnittandeuter: Auf einer Metalloberfläche liegt ein weißer Papierstapel, darüber ist das Stapelschneider-Messer, auf dem Papierstapel verläuft eine rote Licht-Sichtlinie.

Precision that shines.

The optical cutting indicator with bright LEDs projects the exact cutting line onto the material, enabling precise cutting according to cutting marks. This function ensures maximum accuracy and efficiency with every cut.

Szenenbild aus dem Video zum Schnittvorgang des elektrischen Stapelschneiders IDEAL 5560: Nahaufnahme des großen 7-Zoll-Touchpads, auf dem eine Hand gerade ein Maß eingibt.

Intuitive control, maximum efficiency.

The modern control module with a multilingual 7-inch touchpad allows for simple and precise operation of the electric backstop. Store up to 99 programs with 99 steps each and optimize your workflows. For maximum efficiency, repeatability and comfortable control!

Nahaufnahme der Messerwechsel-Szene bei einem IDEAL Stapelschneider. Zwei Hände halten ein Werkzeug mit dem Stapelschneider-Messer.

Safe blade change made easy.

The clever blade changing device allows for a quick and safe change – without removing any housing parts. The covered cutting edge ensures maximum protection. This keeps blade changing simple, safe and efficient, so you can continue working without long interruptions!

Nahaufnahme auf die Frontseite des elektrischen Stapelschneiders IDEAL 5560 LT. Zoom auf eine Hand, die im Begriff ist, am elektronischen Handrad zu drehen.

Precision in the blink of an eye.

The electronic handwheel allows for manual saddle positioning with stepless progressive control from "fast" to "slow" in 1/10 mm increments. This ensures maximum precision and control during cutting.

Nahaufnahme auf den Maschinentisch eines IDEAL Stapelschneiders IDEAL 5560 LT mit Lufttisch - zu sehen sind goldfarbene, runde Luftdüsen und ein angeschnittener Stapel Papier.

Effortless positioning thanks to the air table.

The innovative air table significantly facilitates the positioning and movement of stacks of paper. Air is blown through small openings in the tabletop, creating an air cushion that minimizes frictional resistance between the paper stack and the table surface. This allows even large quantities of paper to be handled effortlessly and comfortably.

Vorschaltbild zum Video des Schneidvorgangs beim programmierbaren Stapelschneider IDEAL THE 56: Der Zoom liegt auf dem Messer, im Hintergrund ist der Rückanschlag-Rechen zu sehen, im Vordergrund auf dem Schneidetisch liegt ein Papierstapel. Das Messer senkt sich präzise und durchschneidet den Stapel in einem Zug.

High precision thanks to quality steel.

For clean, precise cuts: The high-quality blade made of high-grade knife steel ensures maximum precision and durability. Even with intensive use, the cutting performance remains consistently sharp. Perfect for demanding cutting tasks – powerful, reliable and efficient.
