Guillotine

6660

Name: 6660
Brand: de-ideal
SKU: 66603111
Price: 11756.0 EUR
Availability: InStock

€11.756,00

Prices valid in Germany incl. 19% VAT (Online sales in Germany only. For other countries, please contact your local dealer).

Find a dealer

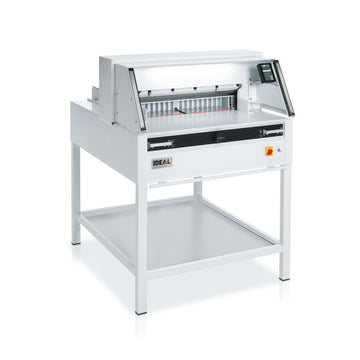

IDEAL 6660, electric guillotine with EASY-CUT, 650 mm cutting length, IR safety curtain and touchpad control – Made in Germany.

highlights

Electric professional stack cutter for DIN A2 with 650 mm cutting length
EASY-CUT two-stage trigger for ergonomic and safe working.
IR safety light curtain on the front table for maximum user protection.
Backstop with touchpad control and digital display in cm/inch
99 programs with up to 99 steps – including chain measurement function and memory buttons
Electronic handwheel for manual fine adjustment in 1/10 mm increments.
Optical cutting indicator with LEDs for precise alignment before cutting.
Fully automatic program sequence including EJECT function and reference dimension set.
Tool-free blade change with covered cutting edge for increased safety.
High-quality blade, full-steel blade carrier, adjustable guides
Robust all-metal construction with ergonomic table height (940 mm)
Standard equipment includes base frame, paper shelf, tool holder and stacking angle.

Description

The IDEAL 6660 is a powerful, electrically powered stack cutter for professional applications. With a cutting length of 650 mm and a cutting height of 80 mm, it meets the highest demands for safety, precision and ease of operation. Developed for use in digital printing, in-house printing or post-processing, this model offers an intelligent combination of automated control and robust mechanical engineering – "Made in Germany".

The central operating component is the patented EASY-CUT system, which enables a safe and ergonomic two-stage release for knives and press beams. An electronic handwheel is available for fine-tuning the backstop, which is progressively adjustable in 1/10 mm increments. The cutting line can be precisely determined via the optical LED cutting indicator.

A special safety feature is the IR safety light curtain on the front table. It enables an uninterrupted cutting process while ensuring maximum personal protection. The SCS – Safety Cutting System also includes a rear table cover, a 24-volt control system, safety drive, blade stop function, automatic return stroke, and a tool-free blade change mechanism with a covered cutting edge.

The backstop is operated via a multilingual touchpad with digital measurement display (cm/inch). 99 programs with up to 99 program steps, chain measurement function, fixed measurement storage, integrated calculator and automatic reference measurement setting ensure maximum efficiency for series orders. The EJECT function can also be fully integrated into the cutting process.

With its robust all-metal construction, solid steel blade carrier, hardened guides and an ergonomic table height, the IDEAL 6660 is designed for a long service life and intensive use.

Equipped as standard with a base frame, paper storage shelf, tool holder and stacking angle, it offers a complete professional cutting system.

specifications

Model: 6660
Order number: 66603111
Dimension: 1293 x 992 x 1220 mm (H x W x D), width with extension table 1565 mm
Weight: 300 kg, 308.5 kg with additional tables
Cutting length: 650 mm
Cutting height: 80 mm
Restschnitt: 25 mm
Insertion depth: 610 mm
Table dimensions: 400 mm front table depth
Pressing: Automatic pressing
Press pressure: 750 daN
Backgauge: electric
Side stop: rear / front left and right
Knife drive: electric
Control: Touchpad
Connection values: 230 V / 50 Hz / 1.42 kW

Downloads

Betriebsanleitung

Shipping and Payment

Free Shipping:
for orders over €50.00

Shipping options:
by GLS parcel delivery for 5.95 €

Payment methods:
Visa, Mastercard, American Express, Maestro, UnionPay, Klarna, PayPal, Shop Pay, Apple Pay, Google Pay

Quality from Germany

Long-term repairable

Sustainable product

More details

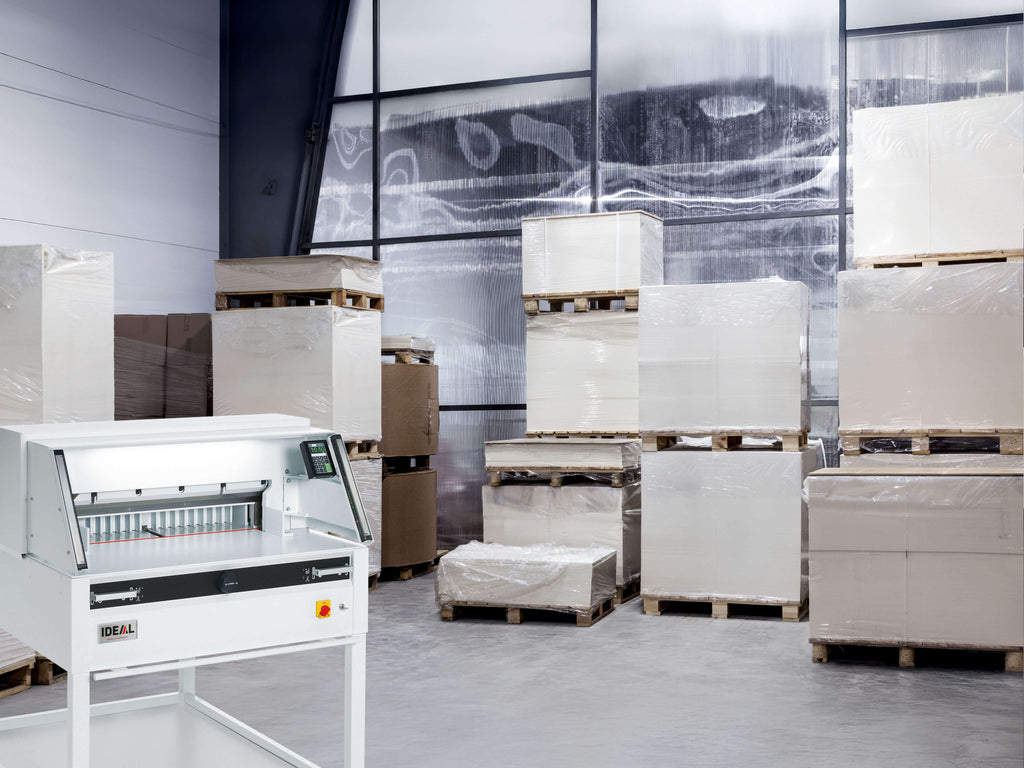

Das Lager einer Druckerei zeigt auf Betonboden aufeinander gestapelte, hohe Paletten eingeschweißter, weißer Druckbögen. Links steht einsatzbereit ein IDEAL 6660 Papierstapelschneider. Im Hintergrund eine große, lichtdurchlässige, raumhohe Industrie-Trennwand.

Wider cutting length for maximum safety with light barrier technology.

Detailansicht eines IDEAL Stapelschneiders 4860, 5260 oder 6660. Zu sehen auf beiden Seiten ist die ir-Sicherheits-Lichtschranke. Eine Hand legt einen Stapel Papier auf den metallenen Maschinentisch. Vorne am Maschinentisch sind EASY-CUT-Schnittauslösetasten, ein elektronisches Handrad und ein Ein-Aus-Schalter zu sehen.

Safety and efficiency combined.

A standard light barrier in the work area ensures safe, efficient, and professional operation. This technology not only protects the operator, but also enables a smooth workflow.

Ausschnitt eines IDEAL Stapelschneiders. Thematisiert sind die Modelle IDEAL 4860-5260-6660. Schräg von oben fotografiert. Oben sichtbar eine transparente Sicherheits-Haube. Zwei Hände betätigen die Schnittauslöse-Tasten EASY-CUT.

Precision and safety in one package.

With the patented EASY-CUT two-hand cutting trigger, you can control the knife and press beam of the stack cutter safely and comfortably. These controls allow you to move both components independently or synchronously, giving you maximum flexibility and control during cutting. This technology ensures not only precise cuts but also maximum operating safety.

Detailansicht eines IDEAL Stapelschneiders. Zu sehen ist der optische LED-Schnittandeuter: Auf einer Metalloberfläche liegt ein weißer Papierstapel, darauf verläuft eine rote Licht-Sichtlinie.

Precision that shines.

The optical cutting indicator with bright LEDs projects the exact cutting line onto the material, enabling precise cutting according to cutting marks. This function ensures maximum accuracy and efficiency with every cut.

Szenenbild aus dem Video zum Schnittvorgang des elektrischen Stapelschneiders IDEAL 4855: Nahaufnahme des digitalen Touchpads, auf dem der Zeigefinger einer Hand gerade ein Maß eingibt.

Intuitive control, maximum efficiency.

The modern control module with multilingual touchpad allows for simple and precise operation of the electric backstop. Save up to 99 programs with 99 steps each and optimize your workflows. For maximum efficiency, repeatability and comfortable control!

Nahaufnahme des sicheren Messerwechsels bei einem IDEAL Stapelschneider. Zwei Hände halten ein Werkzeug mit dem Stapelschneider-Messer. Die Hände sind geschützt. Im Hintergrund ist der rechenartige Rückanschlag zu sehen.

Safe blade change made easy.

The clever blade changing device allows for a quick and safe change – without removing any housing parts. The covered cutting edge ensures maximum protection. This keeps blade changing simple, safe and efficient, so you can continue working without long interruptions!

Nahaufnahme auf die Frontseite des elektrischen IDEAL-Stapelschneiders. Zoom auf eine Hand, die im Begriff ist, am elektronischen Handrad zu drehen.

Precision in the blink of an eye.

The electronic handwheel allows for manual saddle positioning with stepless progressive control from "fast" to "slow" in 1/10 mm increments. This ensures maximum precision and control during cutting.

Nahaufnahme der Rückansicht eines IDEAL Stapelschneiders - das Bild zeigt eine Sicherheitsabdeckung aus Metall und frontal einen Werkzeughalter mit diversen Schraubenziehern und Werkzeugen zur Wartung der Maschine.

Tools always within reach.

The well-designed tool holder on the rear table ensures optimum order and quick access. All important tools for blade changing or maintenance are safely stored and always within reach. This saves you time and allows you to work efficiently – with perfectly organized accessories directly on the machine!

Vorschaltbild zum Video des Schneidvorgangs beim programmierbaren Stapelschneider IDEAL THE 56: Der Zoom liegt auf dem Messer, im Hintergrund ist der Rückanschlag-Rechen zu sehen, im Vordergrund auf dem Schneidetisch liegt ein Papierstapel. Das Messer senkt sich präzise und durchschneidet den Stapel in einem Zug.

High precision thanks to quality steel.

For clean, precise cuts: The high-quality blade made of high-grade knife steel ensures maximum precision and durability. Even with intensive use, the cutting performance remains consistently sharp. Perfect for demanding cutting tasks – powerful, reliable and efficient.
