Guillotines

4860

Name: 4860
Brand: de-ideal
SKU: 48603111
Price: 10639.0 EUR
Availability: InStock

€10.639,00

Prices valid in Germany incl. 19% VAT (Online sales in Germany only. For other countries, please contact your local dealer).

Find a dealer

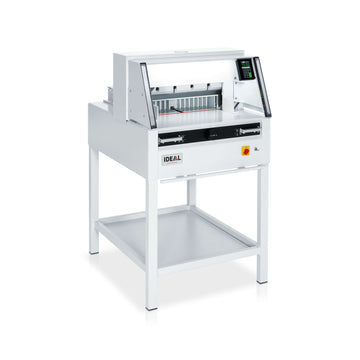

IDEAL 4860, electric guillotine with EASY-CUT, automatic clamping, backgauge control with touchpad – Made in Germany.

highlights

Electric stack cutter for DIN A3+ formats
EASY-CUT two-stage controls for safe and ergonomic operation.
Safety light barrier on the front table for uninterrupted, protected working.
Backstop with touchpad, program memory and digital measurement display
99 programs with 99 steps each – including chain stitch function
Electronic handwheel for fine adjustment in 1/10 mm increments
Automatic pressing and electromechanical knife drive for precise cuts.
Three-stage LED workstation lighting for optimum visibility
Optical cutting indicator with LEDs for precise alignment
Easy blade replacement with device and covered cutting edge.
Robust all-metal construction – durable, low-maintenance, repairable
Standard equipment includes a base, tool holder, paper tray and stacking angle.

Description

The IDEAL 4860 is a professional stack cutter for demanding cutting processes up to DIN A3+. With a cutting length of 475 mm and a cutting height of up to 80 mm, this model processes large stacks of paper safely, efficiently and with high precision – ideal for digital printers, finishing companies or in-house printing departments with complex requirements.

The patented EASY-CUT two-stage controls ensure comfortable, ergonomic operation with maximum safety. The SCS – Safety Cutting System is complemented by an integrated IR safety light curtain on the front table, which ensures a safe workflow without manual intervention. The safety concept is completed by a rear table cover, a main switch with lock and an automatic return of the knife and press beam.

The heart of the control system is the touchpad with multilingual operation. The electrically operated backstop can be precisely controlled via 99 programs with 99 steps each – including direct input, chain dimension function and EJECT command. Fine adjustment is done via the electronic handwheel with steplessly adjustable speed in the range of 1/10 mm. Pre-programmed DIN dimensions and memory buttons further simplify the workflow.

In addition to the electromechanical blade drive, the optical cutting indicator with bright LEDs and the three-stage LED work area lighting ensure precise cutting results. Simple maintenance is guaranteed: the blade can be changed without tools via an integrated device with a covered blade edge.

The robust all-metal construction, combined with a solid steel blade carrier and hardened blade guides, stands for the highest quality, repairability and durability - Made in Germany.

specifications

Model: 4860
Order number: 48603111
Dimension: 1296 x 762 x 992 mm (H x W x D), width with extension table 1349 mm
Weight: 218 kg, 226.5 kg with additional tables
Cutting length: 475 mm
Cutting height: 80 mm
Restschnitt: 35 mm
Insertion depth: 450 mm
Table dimensions: 338 mm front table depth
Pressing: Automatic pressing
Press pressure: 750 daN
Backgauge: electric
Side stop: rear / front left and right
Knife drive: electric
Control: Touchpad
Connection values: 230 V / 50 Hz / 1.42 kW

Downloads

Betriebsanleitung

Shipping and Payment

Free Shipping:
for orders over €50.00

Shipping options:
by GLS parcel delivery for 5.95 €

Payment methods:
Visa, Mastercard, American Express, Maestro, UnionPay, Klarna, PayPal, Shop Pay, Apple Pay, Google Pay

Quality from Germany

Long-term repairable

Sustainable product

More details

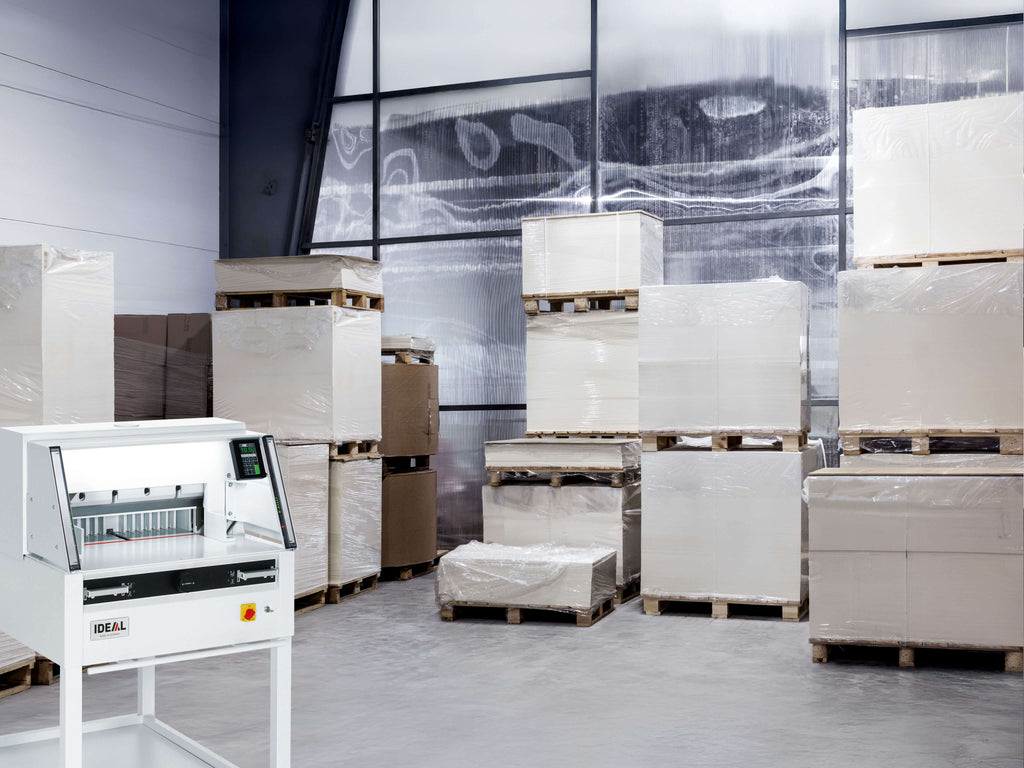

Das Lager einer Druckerei zeigt auf Betonboden aufeinander gestapelte, hohe Paletten eingeschweißter, weißer Druckbögen. Links steht einsatzbereit ein IDEAL 4860 Papierstapelschneider. Im Hintergrund eine große, lichtdurchlässige, raumhohe Industrie-Trennwand.

Safe cutting with light barriers and automatic pressing.

Detailansicht eines IDEAL Stapelschneiders 4860, 5260 oder 6660. Zu sehen auf beiden Seiten ist die ir-Sicherheits-Lichtschranke. Eine Hand legt einen Stapel Papier auf den metallenen Maschinentisch. Vorne am Maschinentisch sind EASY-CUT-Schnittauslösetasten, ein elektronisches Handrad und ein Ein-Aus-Schalter zu sehen.

Safety and efficiency combined.

A standard light barrier in the work area ensures safe, efficient, and professional operation. This technology not only protects the operator, but also enables a smooth workflow.

Ausschnitt eines IDEAL Stapelschneiders. Thematisiert sind die Modelle IDEAL 4860-5260-6660. Schräg von oben fotografiert. Oben sichtbar eine transparente Sicherheits-Haube. Zwei Hände betätigen die Schnittauslöse-Tasten EASY-CUT.

Precision and safety in one package.

With the patented EASY-CUT two-hand cutting trigger, you can control the knife and press beam of the stack cutter safely and comfortably. These controls allow you to move both components independently or synchronously, giving you maximum flexibility and control during cutting. This technology ensures not only precise cuts but also maximum operating safety.

Detailansicht eines IDEAL Stapelschneiders. Zu sehen ist der optische LED-Schnittandeuter: Auf einer Metalloberfläche liegt ein weißer Papierstapel, darauf verläuft eine rote Licht-Sichtlinie.

Precision that shines.

The optical cutting indicator with bright LEDs projects the exact cutting line onto the material, enabling precise cutting according to cutting marks. This function ensures maximum accuracy and efficiency with every cut.

Szenenbild aus dem Video zum Schnittvorgang des elektrischen Stapelschneiders IDEAL 4855: Nahaufnahme des digitalen Touchpads, auf dem der Zeigefinger einer Hand gerade ein Maß eingibt.

Intuitive control, maximum efficiency.

The modern control module with multilingual touchpad allows for simple and precise operation of the electric backstop. Save up to 99 programs with 99 steps each and optimize your workflows. For maximum efficiency, repeatability and comfortable control!

Nahaufnahme des sicheren Messerwechsels bei einem IDEAL Stapelschneider. Zwei Hände halten ein Werkzeug mit dem Stapelschneider-Messer. Die Hände sind geschützt. Im Hintergrund ist der rechenartige Rückanschlag zu sehen.

Safe blade change made easy.

The clever blade changing device allows for a quick and safe change – without removing any housing parts. The covered cutting edge ensures maximum protection. This keeps blade changing simple, safe and efficient, so you can continue working without long interruptions!

Nahaufnahme auf die Frontseite des elektrischen IDEAL-Stapelschneiders. Zoom auf eine Hand, die im Begriff ist, am elektronischen Handrad zu drehen.

Precision in the blink of an eye.

The electronic handwheel allows for manual saddle positioning with stepless progressive control from "fast" to "slow" in 1/10 mm increments. This ensures maximum precision and control during cutting.

Nahaufnahme der Rückansicht eines IDEAL Stapelschneiders - das Bild zeigt eine Sicherheitsabdeckung aus Metall und frontal einen Werkzeughalter mit diversen Schraubenziehern und Werkzeugen zur Wartung der Maschine.

Tools always within reach.

The well-designed tool holder on the rear table ensures optimum order and quick access. All important tools for blade changing or maintenance are safely stored and readily available at all times. This saves you time and allows you to work efficiently – with perfectly organized accessories directly on the machine.

Vorschaltbild zum Video des Schneidvorgangs beim programmierbaren Stapelschneider IDEAL THE 56: Der Zoom liegt auf dem Messer, im Hintergrund ist der Rückanschlag-Rechen zu sehen, im Vordergrund auf dem Schneidetisch liegt ein Papierstapel. Das Messer senkt sich präzise und durchschneidet den Stapel in einem Zug.

High precision thanks to quality steel.

For clean, precise cuts: The high-quality blade made of high-grade knife steel ensures maximum precision and durability. Even with intensive use, the cutting performance remains consistently sharp. Perfect for demanding cutting tasks – powerful, reliable and efficient.
