Guillotines

4855

Name: 4855
Brand: de-ideal
SKU: 48553111
Price: 9048.0 EUR
Availability: InStock

€9.048,00

Prices valid in Germany incl. 19% VAT (Online sales in Germany only. For other countries, please contact your local dealer).

Find a dealer

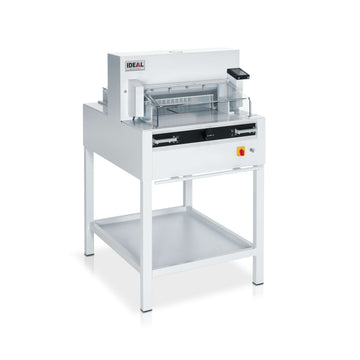

IDEAL 4855, electric guillotine with touchpad, program control and automatic clamping – Made in Germany.

highlights

Professional electric stack cutter with 475 mm cutting length for DIN A3+
EASY-CUT two-stage controls for safe, ergonomic cutting activation.
Automatic pressing and electromechanical knife drive for precise cuts.
Electric backstop with touchpad and programmable control.
Up to 99 programs can be stored, each with 99 program steps.
SCS – Safety Cutting System with comprehensive safety features
Electronic handwheel for fine adjustment in 1/10 mm increments
Blade changing device with covered cutting edge – tool-free and safe
Optical cut indicator with LEDs for precise cut line display.
Solid steel knife holder with knives made of high-quality knife steel.
Stable all-metal construction with ergonomic working height (940 mm)
Sustainable production and high repairability – Made in Germany

Description

The IDEAL 4855 is a powerful, electrically powered stack cutter for demanding cutting tasks up to DIN A3+. Equipped with state-of-the-art control technology, it offers precise, safe and comfortable operation – ideal for copyshops, prepress departments or in-house printing areas with regularly changing cutting jobs.

The central control element is the touchpad for controlling the electric backstop. The program control allows you to save up to 99 programs with 99 steps each – including chain dimensions, direct input, EJECT function and pre-set DIN formats. Fine adjustment is made via the electronic handwheel with progressive control in 1/10 mm steps. This allows even demanding cutting jobs to be implemented precisely and reproducibly.

The patented EASY-CUT two-stage controls ensure ergonomic, safe cutting. The automatic pressing ensures even pressure on the material being cut, while the electromechanical blade drive guarantees a clean cut image at cutting heights of up to 80 mm. The optical cutting indicator with LED light line provides additional support for precise positioning.

The SCS – Safety Cutting System includes an electronically monitored, transparent safety device on the front table, a cover on the rear table, a main switch with lock, a 24-volt control system, as well as automatic return stroke and blade depth adjustment from the outside. The blade change is simple, safe and without opening the housing via the integrated blade change device with covered cutting edge.

With its robust all-metal housing, a standard base, paper storage shelf and tool holder, the IDEAL 4855 is designed for durable, sustainable use – in proven German brand quality.

specifications

Model: 4855
Order number: 48553111
Dimension: 1296 x 762 x 992 mm (H x W x D), width with extension table 1349 mm
Weight: 219 kg, 227.5 kg with additional tables
Cutting length: 475 mm
Cutting height: 80 mm
Restschnitt: 35 mm
Insertion depth: 450 mm
Table dimensions: 338 mm front table depth, 320 mm usable
Pressing: Automatic pressing
Press pressure: 750 daN
Backgauge: electric
Side stop: rear / front left and right
Knife drive: electric
Control: Touchpad
Connection values: 230 V / 50 Hz / 1.42 kW

Downloads

Betriebsanleitung

Shipping and Payment

Free Shipping:
for orders over €50.00

Shipping options:
by GLS parcel delivery for 5.95 €

Payment methods:
Visa, Mastercard, American Express, Maestro, UnionPay, Klarna, PayPal, Shop Pay, Apple Pay, Google Pay

Quality from Germany

Long-term repairable

Sustainable product

More details

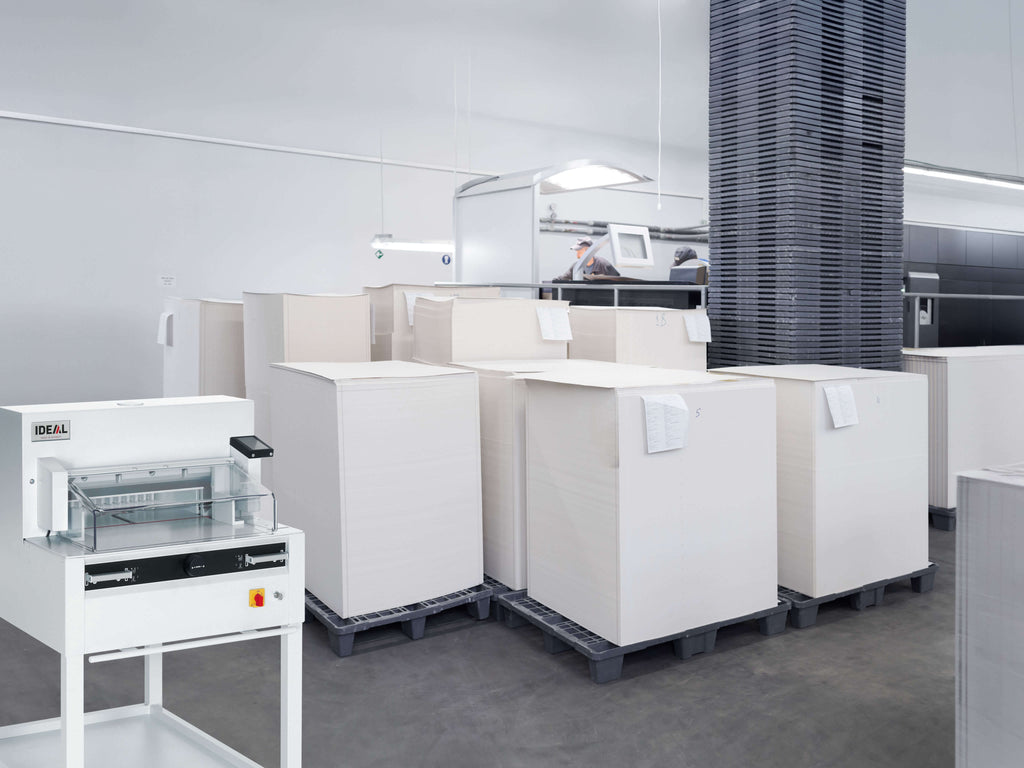

Ein geräumige, moderne Druckerei mit mehreren Paletten voll weißer Papierbögen. Im Vordergrund ein IDEAL 4855 Stapelschneider zum Beschneiden von Druckbögen. Im Hintergrund des gut beleuchteten Raums mit Betonboden steht eine moderne Druckstraße.

Electric precision with touchpad and automatic pressing.

Detailansicht eines elektrischen IDEAL Papier-Stapelschneiders. Zu sehen die transparente Sicherheits-Haube. Der Blick fällt auf einen Teil des metallenen Maschinentischs, darunter ist ein Schnittauslöse-Taster zu sehen.

Safe cut guaranteed.

For maximum safety: A cut can only be made when the pivoting, transparent safety guard on the front table is closed. This ensures optimal protection for the user – for safe and efficient working.

Ausschnitt eines IDEAL Stapelschneiders. Thematisiert sind die Modelle IDEAL 4855-5255-6655. Schräg von oben fotografiert. Oben sichtbar eine transparente Sicherheits-Haube. Zwei Hände betätigen die Schnittauslöse-Tasten EASY-CUT.

Precision and safety in one package.

With the patented EASY-CUT two-hand cutting trigger, you can control the knife and press beam of the stack cutter safely and comfortably. These controls allow you to move both components independently or synchronously, giving you maximum flexibility and control during cutting. This technology ensures not only precise cuts but also maximum operating safety.

Detailansicht eines IDEAL Stapelschneiders. Zu sehen ist der optische LED-Schnittandeuter: Auf einer Metalloberfläche liegt ein weißer Papierstapel, darauf verläuft eine rote Licht-Sichtlinie.

Precision that shines.

The optical cutting indicator with bright LEDs projects the exact cutting line onto the material, enabling precise cutting according to cutting marks. This function ensures maximum accuracy and efficiency with every cut.

Szenenbild aus dem Video zum Schnittvorgang des elektrischen Stapelschneiders IDEAL 4855: Nahaufnahme des digitalen Touchpads, auf dem der Zeigefinger einer Hand gerade ein Maß eingibt.

Intuitive control, maximum efficiency.

The modern control module with multilingual touchpad allows for simple and precise operation of the electric backstop. Save up to 99 programs with 99 steps each and optimize your workflows. For maximum efficiency, repeatability and comfortable control!

Nahaufnahme einer für den Bediener sicheren Messerwechsel-Szene bei einem IDEAL Stapelschneider 4855, 5255 oder 6655. Zwei Hände halten ein Werkzeug mit dem Stapelschneider-Messer. Die Hände sind geschützt. Man sieht noch einen Teil der Maschine mit elektronischem Handrad und EASY Cut-Schnittauslöser.

Safe blade change made easy.

The clever blade changing device allows for a quick and safe change – without removing any housing parts. The covered cutting edge ensures maximum protection. This keeps blade changing simple, safe and efficient, so you can continue working without long interruptions!

Nahaufnahme auf die Frontseite des elektrischen IDEAL-Stapelschneiders. Zoom auf eine Hand, die im Begriff ist, am elektronischen Handrad zu drehen.

Precision in the blink of an eye.

The electronic handwheel allows for manual saddle positioning with stepless progressive control from "fast" to "slow" in 1/10 mm increments. This ensures maximum precision and control during cutting.

Nahaufnahme der Rückansicht eines IDEAL Stapelschneiders - das Bild zeigt eine Sicherheitsabdeckung aus Metall und frontal einen Werkzeughalter mit diversen Schraubenziehern und Werkzeugen zur Wartung der Maschine.

Tools always within reach.

The well-designed tool holder on the rear table ensures optimum order and quick access. All important tools for blade changing or maintenance are safely stored and always within reach. This saves you time and allows you to work efficiently – with perfectly organized accessories directly on the machine!

Vorschaltbild zum Video des Schneidvorgangs beim programmierbaren Stapelschneider IDEAL THE 56: Der Zoom liegt auf dem Messer, im Hintergrund ist der Rückanschlag-Rechen zu sehen, im Vordergrund auf dem Schneidetisch liegt ein Papierstapel. Das Messer senkt sich präzise und durchschneidet den Stapel in einem Zug.

High precision thanks to quality steel.

For clean, precise cuts: The high-quality blade made of high-grade knife steel ensures maximum precision and durability. Even with intensive use, the cutting performance remains consistently sharp. Perfect for demanding cutting tasks – powerful, reliable and efficient.
